ORM-ECommerce-Back-End

Object-Relational-Mapping (ORM): E-commerce Back End 👋

Description

ORM E Commerce is a Back end API built for the back end developers. This API is built using Express.js and configured to use Sequelize in order to interact with MySQL database.

Table of Contents

• Description
• Table of Contents
• App Demo
• Overview Links
• User Story
• Acceptance Criteria
• Database Models
• Associations
• Installation
• Usage
• Contributing
• Questions

App Demo

• Picture of Application

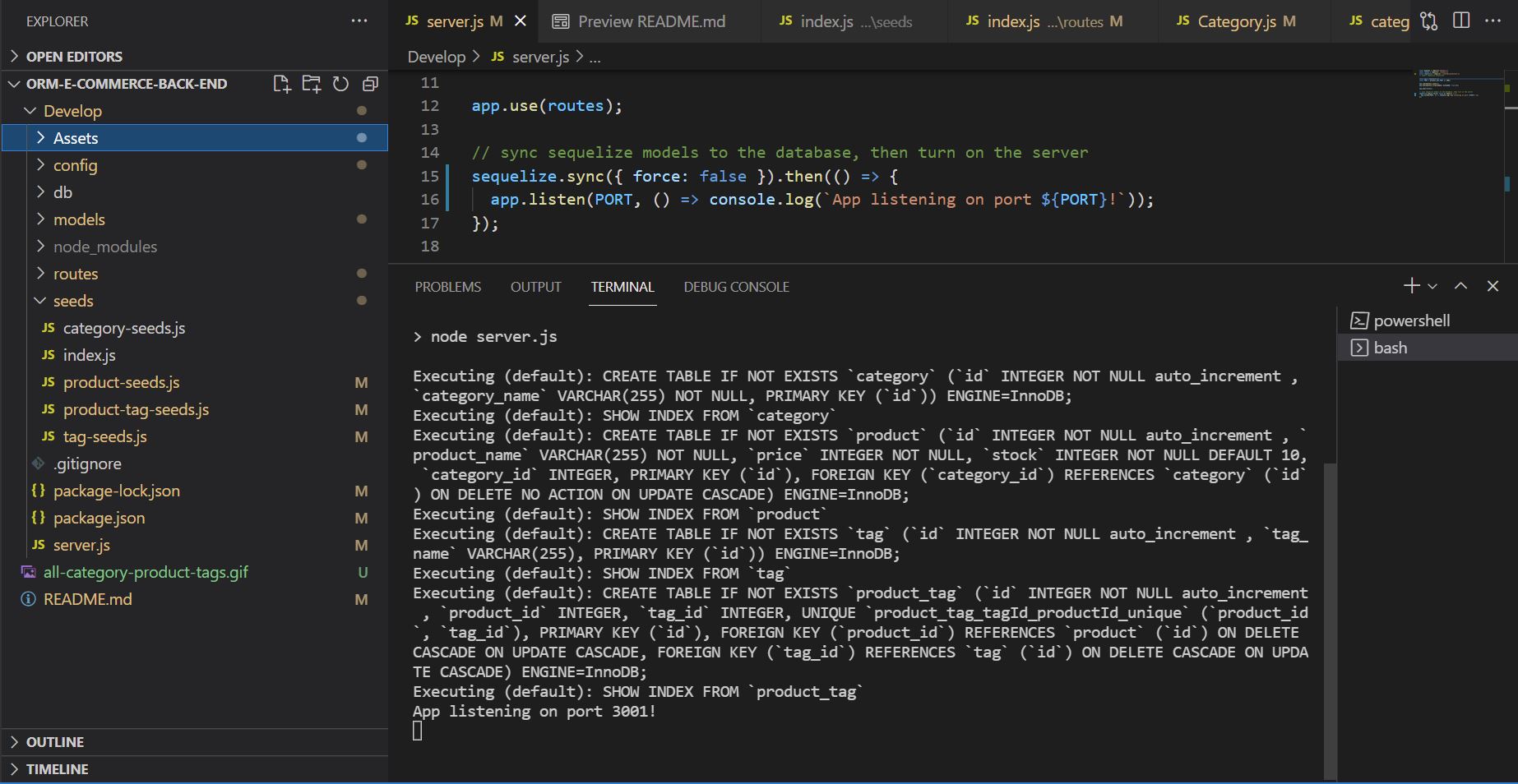

• Picture of Server Function

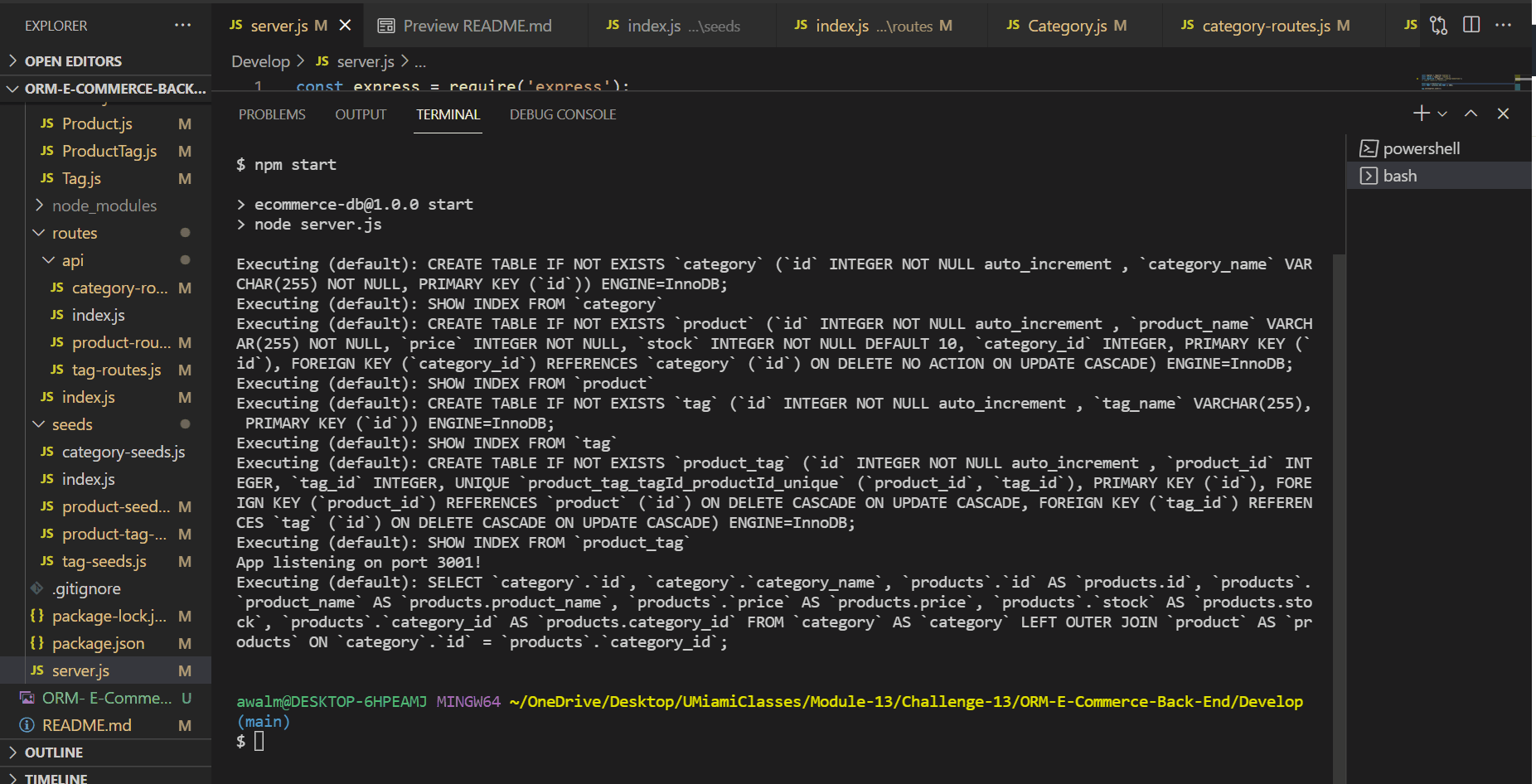

• Create Schema and Seed data

• GET routes to return all categories, all products and all tags

• GET routes to return a single category, a single product, and a single tag

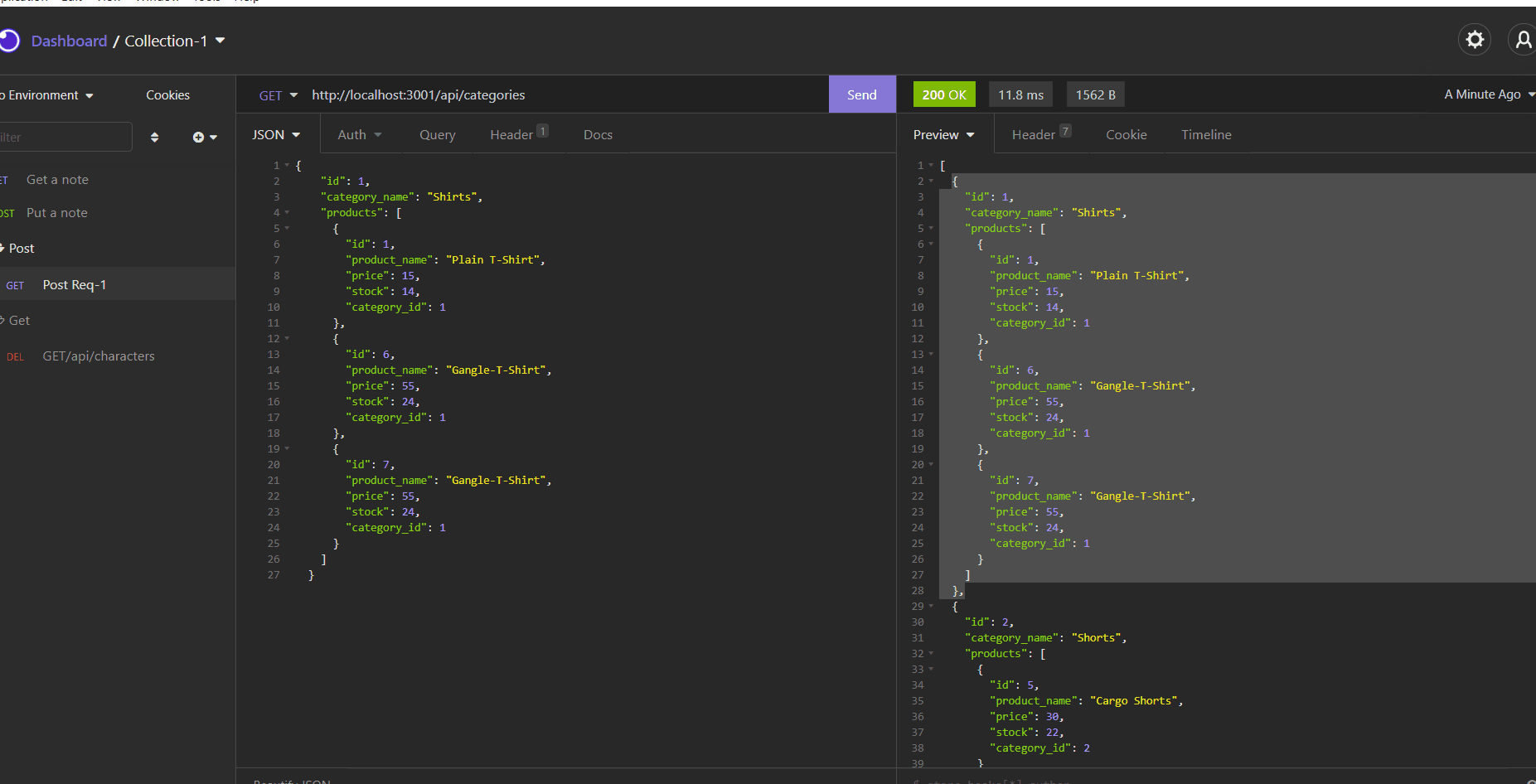

• POST, PUT, and DELETE routes for categories

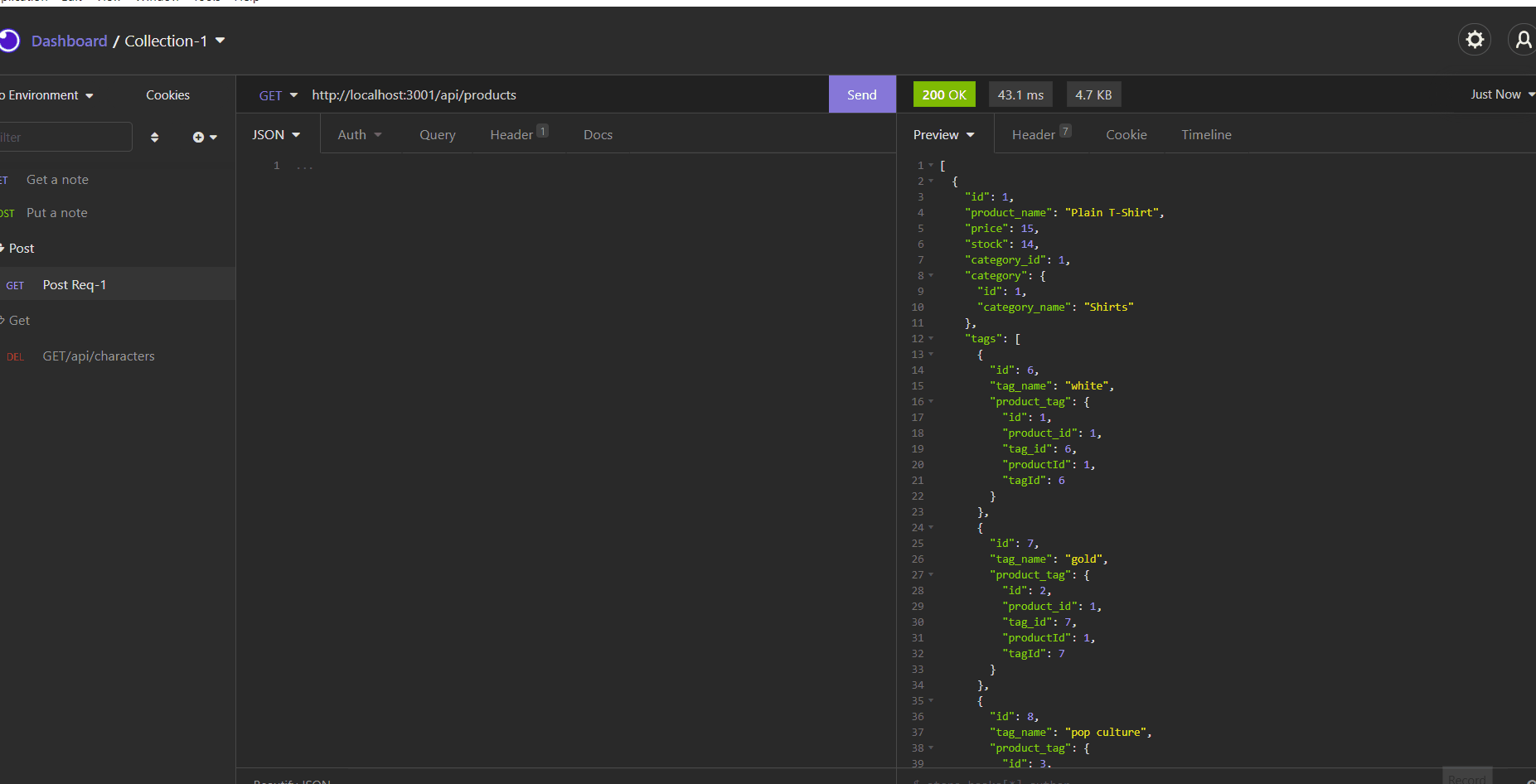

• POST, PUT, and DELETE routes for Products

• POST, PUT, and DELETE routes for Tags

Overview Links

• Application walkthrough
• GitHub Repository

User Story

AS A manager at an internet retail company
I WANT a back end for my e-commerce website that uses the latest technologies
SO THAT my company can compete with other e-commerce companies

Acceptance Criteria

GIVEN a functional Express.js API
WHEN I add my database name, MySQL username, and MySQL password to an environment variable file
THEN I am able to connect to a database using Sequelize
WHEN I enter schema and seed commands
THEN a development database is created and is seeded with test data
WHEN I enter the command to invoke the application
THEN my server is started and the Sequelize models are synced to the MySQL database
WHEN I open API GET routes in Insomnia Core for categories, products, or tags
THEN the data for each of these routes is displayed in a formatted JSON
WHEN I test API POST, PUT, and DELETE routes in Insomnia Core
THEN I am able to successfully create, update, and delete data in my database

Database Models

• Category

  • id
    • Integer
    • Doesn’t allow null values
    • Set as primary key
    • Uses auto increment
  • category_name
    • String
    • Doesn’t allow null values

• Product

  • id
    • Integer
    • Doesn’t allow null values
    • Set as primary key
    • Uses auto increment
  • product_name
    • String
    • Doesn’t allow null values
  • price
    • Decimal
    • Doesn’t allow null values
    • Validates that the value is a decimal
  • stock
    • Integer
    • Doesn’t allow null values
    • Set a default value of 10
    • Validates that the value is numeric
  • category_id
    • Integer
    • References the category model’s id

• Tag

  • id
    • Integer
    • Doesn’t allow null values
    • Set as primary key
    • Uses auto increment
  • tag_name
    • String

• ProductTag

  • id
    • Integer
    • Doesn’t allow null values
    • Set as primary key
    • Uses auto increment
  • product_id
    • Integer
    • References the product model’s id
  • tag_id
    • Integer
    • References the tag model’s id

Associations

I have executed association methods on my Sequelize models to create the following relationships between them:

• Product belongs to Category, as a category can have multiple products but a product can only belong to one category.

• Category has many Product models.

• Product belongs to many Tag models. Using the ProductTag through model, allow products to have multiple tags and tags to have many products.

• Tag belongs to many Product models.

Installation

💾

npm init

npm install express

npm install mysql2

npm install sequelize

Usage

💻

Run the following command at the root of your project and answer the prompted questions:

npm run seeds

npm start
